Diving into the Source Frames in Chrome DevTools

Chrome(10y ago)

#Javascript Editor

The javascript editor in devtools parlance is refereed to as a Source Frame. There are two source frames in devtools, the javascript editor and css editor.

The javascript editor not surprisingly has a custom logic for communicating with the console and handling breakpoints.

The main source frame, is more concerned with showing content, searching, jumping to lines.

The editor is in many ways a glorified wrapper in that a lot of the actual work is handled by the text editor (codemirror). For example, when the editor wants to jump to a nother search result it tells the editor to highlight the result.

jumpToSearchResult: function(index) {
    this._currentSearchResultIndex = (index + this._searchResults.length) % this._searchResults.length;
    this._currentSearchMatchChangedCallback(this._currentSearchResultIndex);

    var result = this._searchResults[this._currentSearchResultIndex]
    this._textEditor.highlightSearchResults(this._searchRegex, result);
}

jumpToSearchResult: function(index) {
    this._currentSearchResultIndex = (index + this._searchResults.length) % this._searchResults.length;
    this._currentSearchMatchChangedCallback(this._currentSearchResultIndex);

    var result = this._searchResults[this._currentSearchResultIndex]
    this._textEditor.highlightSearchResults(this._searchRegex, result);
}

#Shortcuts

All of the shortcuts are defined in an object WebInspector.ShortcutsScreen.SourcesPanelShortcuts. Here's a dump of them for fun:

SelectNextOccurrence
SoftUndo
GotoMatchingBracket
ToggleAutocompletion
IncreaseCSSUnitByOne
DecreaseCSSUnitByOne
IncreaseCSSUnitByTen
DecreaseCSSUnitByTen
EvaluateSelectionInConsole
AddSelectionToWatch
GoToMember
GoToLine
ToggleBreakpoint
NextCallFrame
PrevCallFrame
ToggleComment
JumpToPreviousLocation
JumpToNextLocation
CloseEditorTab
Save
SaveAll

#How do the function links work?

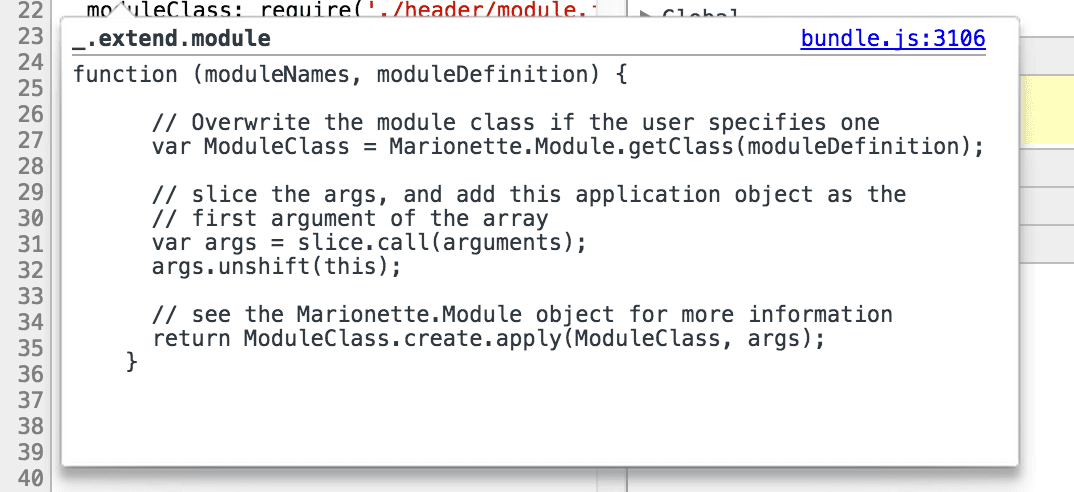

The function link in the object popover is a little know trick for jumping to a function definition.

Not surprisingly, the link is setup inside the ObjectHelper

When you hover over a function showObjectPopover is called. That then kicks off a _queryObject fetch. Then, if the result is a function, the result is re-fetched for its properties result.getOwnProperties and shown didGetFunctionProperties.

The formatting for the popover is done in didGetFunctionDetails

function didGetFunctionDetails(popoverContentElement, anchorElement, response) {
  var container = createElementWithClass("div", "object-popover-container");

  var title = container.createChild(
    "div",
    "function-popover-title source-code"
  );
  var functionName = (title.createChild("span", "function-name").textContent =
    response.functionName);

  var link = this._lazyLinkifier().linkifyRawLocation(
    response.location,
    response.sourceURL,
    "function-location-link"
  );
  title.appendChild(link);

  container.appendChild(popoverContentElement);
  popover.showForAnchor(container, anchorElement);
}

function didGetFunctionDetails(popoverContentElement, anchorElement, response) {
  var container = createElementWithClass("div", "object-popover-container");

  var title = container.createChild(
    "div",
    "function-popover-title source-code"
  );
  var functionName = (title.createChild("span", "function-name").textContent =
    response.functionName);

  var link = this._lazyLinkifier().linkifyRawLocation(
    response.location,
    response.sourceURL,
    "function-location-link"
  );
  title.appendChild(link);

  container.appendChild(popoverContentElement);
  popover.showForAnchor(container, anchorElement);
}

I think it's pretty cool that the popover is shown with showForAnchor w/ the anchor element being passed in.

#Linkifier

The ObjectHelper sets up a basic Linkifier for jumping to function definitions.

WebInspector.Linkifier = function (formatter) {
  this._formatter =
    formatter ||
    new WebInspector.Linkifier.DefaultFormatter(
      WebInspector.Linkifier.MaxLengthForDisplayedURLs
    );
  this._liveLocationsByTarget = new Map();
  WebInspector.targetManager.observeTargets(this);
};

WebInspector.Linkifier = function (formatter) {
  this._formatter =
    formatter ||
    new WebInspector.Linkifier.DefaultFormatter(
      WebInspector.Linkifier.MaxLengthForDisplayedURLs
    );
  this._liveLocationsByTarget = new Map();
  WebInspector.targetManager.observeTargets(this);
};

When building a link, it uses the standard Linkifier instance method linkifyRawLocation.

linkifyRawLocation: function(rawLocation, fallbackUrl, classes) {
    return this.linkifyScriptLocation(
      rawLocation.target(),
      rawLocation.scriptId,
      fallbackUrl,
      rawLocation.lineNumber,
      rawLocation.columnNumber,
      classes // these will be the <a> classses
    );
}


linkifyScriptLocation: function(target, scriptId, sourceURL, lineNumber, columnNumber, classes) {
    var fallbackAnchor = WebInspector.linkifyResourceAsNode(sourceURL, lineNumber, classes);
    var rawLocation = scriptId ?
      target.debuggerModel.createRawLocationByScriptId(scriptId, lineNumber, columnNumber || 0) :
      target.debuggerModel.createRawLocationByURL(sourceURL, lineNumber, columnNumber || 0);

    var anchor = this._createAnchor(classes);
    var liveLocation = WebInspector.debuggerWorkspaceBinding.createLiveLocation(
      rawLocation, this._updateAnchor.bind(this, anchor));

    this._liveLocationsByTarget.get(rawLocation.target()).set(anchor, liveLocation);

    anchor[WebInspector.Linkifier._fallbackAnchorSymbol] = fallbackAnchor;
    return anchor;
},

linkifyRawLocation: function(rawLocation, fallbackUrl, classes) {
    return this.linkifyScriptLocation(
      rawLocation.target(),
      rawLocation.scriptId,
      fallbackUrl,
      rawLocation.lineNumber,
      rawLocation.columnNumber,
      classes // these will be the <a> classses
    );
}


linkifyScriptLocation: function(target, scriptId, sourceURL, lineNumber, columnNumber, classes) {
    var fallbackAnchor = WebInspector.linkifyResourceAsNode(sourceURL, lineNumber, classes);
    var rawLocation = scriptId ?
      target.debuggerModel.createRawLocationByScriptId(scriptId, lineNumber, columnNumber || 0) :
      target.debuggerModel.createRawLocationByURL(sourceURL, lineNumber, columnNumber || 0);

    var anchor = this._createAnchor(classes);
    var liveLocation = WebInspector.debuggerWorkspaceBinding.createLiveLocation(
      rawLocation, this._updateAnchor.bind(this, anchor));

    this._liveLocationsByTarget.get(rawLocation.target()).set(anchor, liveLocation);

    anchor[WebInspector.Linkifier._fallbackAnchorSymbol] = fallbackAnchor;
    return anchor;
},
